In the modern facade manufacturing environment, the greatest challenge is the “Information Gap” between the design office (CAD) and the factory floor (CNC). This disconnect generates Workflow Chaos, where precise dimensions are lost in manual translation, and data entry errors accumulate, leading to the waste of expensive raw materials like panel aluminium composite.
Continuing to operate as isolated islands results in wasted time on repetitive reviews and delayed deliveries. Achieving Operational Certainty requires a system that unifies the language of the engineer with the language of the machine. Connect your design team to the factory floor seamlessly with CladCut.
How to automate the Panel Aluminium Composite fabrication workflow?
Streamline your entire composite panel fabrication workflow from design to delivery. > Automating the fabrication of composite panels relies on integrating the stages of Cutting, Slotting, and Bending into a single digital path. According to modern engineering standards, CAD files are automatically converted into operating codes (G-code) without human intervention. This eliminates measurement errors and ensures that every alpanel aluminium composite panel strictly adheres to structural specifications with millimeter precision.
Engineering Diagnosis: The Science of Transforming ACM to ACP
The transition from raw ACM material to a finished alcopanel aluminium composite panel ready for site installation requires four critical stages: Cutting, Slotting, Bending, and Assembly. Technical documentation indicates that failure to synchronize these stages leads to high “Technical Debt.”
Whether you are utilizing alco panel or evaluating the aludecor acp panel price, the true value does not lie in the price of the sheet itself, but in its processing efficiency. Zero-Bug automation ensures that the produced aluminium metal cladding follows international quality standards, reducing scrap and significantly increasing your Return on Investment (ROI).
Bridge the Gap: Direct Connection Between Design and Machine
The risk of disconnect between the office and the factory is a silent profit killer. To maintain institutional-grade standards, you must move from manual translation to automated execution. Bridge the gap. Send files directly from design to the CNC machine.
Streamline your entire composite panel fabrication workflow from design to delivery. (Note: Digital integration is the only path to 100% architectural certainty.)
Automated Workflow (Step-by-Step)
To achieve total command over your production cycle, follow this hierarchical sequence:
- Design (Engineering Phase): Convert architectural blueprints into 2D manufacturing models containing all slotting and bending details.
- Optimization (Digital Refinement): Utilize Nesting algorithms to distribute cassettes on panel aluminium composite sheets in the most efficient manner to minimize waste.

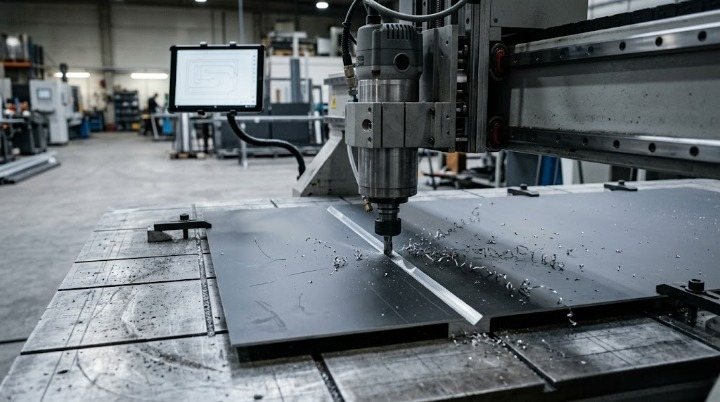

- CNC (Automated Fabrication): Export operation files directly to the router or laser machine to ensure cutting and slotting with zero-defect precision.
- Delivery (Assembly & Handover): Fold panels and assemble cassettes based on identification labels generated automatically by the system for easy site installation.
Product Deep Dive: CladCut – The Engine of Factory Order
CladCut is engineered to end “Workflow Chaos” by linking the engineering office directly to the machine’s software background. We don’t just provide a tool; we engineer a Digital Bridge.
The Return on Investment (ROI) is realized through a 30% reduction in raw material consumption and the total elimination of manual “file preparation” time. CladCut ensures that what the engineer designed is exactly what the machine produces, without the need for intermediaries or redundant data entry. It is the architectural core that guarantees your factory operates at peak mechanical intelligence.
Reclaim Control Over Your Production Line
Systematic order is the secret to success in major facade projects. Do not leave your factory vulnerable to human error or delays caused by communication gaps. It is time to centralize your operations and achieve zero-defect precision in every panel you produce.
Integrate CAD with CNC
Engineered FAQ
- How does automation prevent manual “unfolding” errors?
By reading design files directly and converting them into automated cutting coordinates, eliminating the possibility of human error in transferring numbers or angles.
- Does CladCut support all types of panel aluminium composite?
Yes. The software is designed to be compatible with all thicknesses and brands, including Aludecor and Alco Panel, by automatically adjusting cutting parameters.
- How much time is saved by linking CAD to CNC?
It reduces production order preparation time from hours to a few minutes, allowing the factory to respond rapidly to site changes and urgent requests.
