The physical discovery of HVAC pipes running straight through structural steel beams during the construction phase is a catastrophic operational failure. This discovery anxiety often leads to expensive delays, site-level rework, and a massive drain on project margins as you are forced to break poured concrete to fix a preventable coordination error. In the modern AEC industry, relying on manual coordination is no longer a viable business strategy. Automated clash detection provides the cost-saving certainty required to ensure seamless site coordination and total structural compliance before a single cubic meter of concrete is poured.
What is Clash Detection in BIM?
Clash detection is an automated technical process that utilizes 3D modeling software to identify spatial intersections between architectural, structural, and MEP (Mechanical, Electrical, Plumbing) elements before construction begins. According to DASH’s computational engineering standards, this process ensures constructability and prevents on-site misfabrication by resolving conflicts programmatically in a Virtual Design and Construction (VDC) environment.
Hard Clashes vs. Soft Clashes – A Technical Diagnosis
The efficiency of any BIM clash detection services depends on the precise categorization of conflicts to ensure total design compliance. Relying on traditional 2D drafting for complex interference checking is a multi-million dollar risk. At DASH, we analyze conflicts through a professional pre-construction lens:

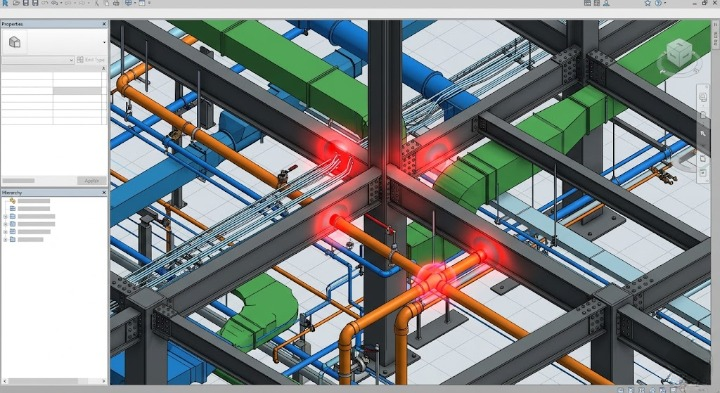

- Hard Clashes: Direct physical intersections where two components occupy the same space (e.g., a plumbing pipe piercing a structural column). These require immediate engineering intervention.
- Soft Clashes: Violations of maintenance clearances or safety “buffer zones” required by the Saudi Building Code (SBC). For example, a high-voltage cable placed too close to a water line.
- Workflow Clashes: Temporal conflicts in the installation sequence that cause team overlaps and site delays.
From Rework Costs to Proactive Automation
The cost of breaking poured concrete to fix a single MEP clash can exceed ten times the investment in an advanced modeling system. Continuing with manual drafting is a conscious decision to bleed profit. This is where automated Navisworks clash test protocols within the DASH environment become a mechanical necessity. We don’t just identify errors; we utilize generative scripts to establish clash-free automated modeling. By programmatically identifying and assisting the resolution of coordination conflicts. we transform site-level chaos into a coordinated engineering symphony. [إشارة للناشر: تم دمج نص الرابط (Anchor Text) في الجملة السابقة. يرجى تفعيل الرابط التشعبي على الكلمات التالية تحديداً: “clash-free automated modeling” وتوجيهها إلى الرابط الهدف.]
The Computational Engine for Zero-Error Coordination
DASH provides a comprehensive SaaS + Service ecosystem that transforms complex models into constructible assets with “Zero-Error” precision. Through our advanced spatial conflict resolution algorithms, we deliver immediate Return on Investment (ROI):
- Spatial Coordination: Resolving inter-disciplinary conflicts in a unified, intelligent model.
- Scrap Reduction: Preventing the procurement of redundant materials caused by sudden site-level path changes.
- Speed & Compliance: Reducing model review cycles by 80% while ensuring 100% adherence to Saudi Building Code (SBC) standards.
Engineering Certainty – Secure Your Margins Today
In the construction sector, time is capital and rework is a net loss. Automated clash detection is the only technical guarantee that your site execution will follow the digital design without friction. Let the “Single Source of Truth” lead your project and ensure a streamlined delivery without expensive engineering surprises.
[Get a Free Initial Clash Detection Report for your current BIM model now] and start your construction journey without rework.
Engineered FAQ
- Does DASH support integration with Revit and Navisworks?
Yes, the system functions as a technical bridge supporting all BIM formats to ensure comprehensive spatial conflict resolution.
- What is the expected ROI of early clash detection?
Engineering studies show that Early coordination significantly reduces costly site rework and schedule delays. in site-level modifications.
- Are DASH outputs compliant with SBC?
Absolutely. SBC standards are natively integrated into our checking algorithms to ensure every clearance violation (Soft Clash) is flagged for compliance.
